Bi-Block Partitions


Bi-Block Partitions – Stylish Solution of Uncompromising Quality

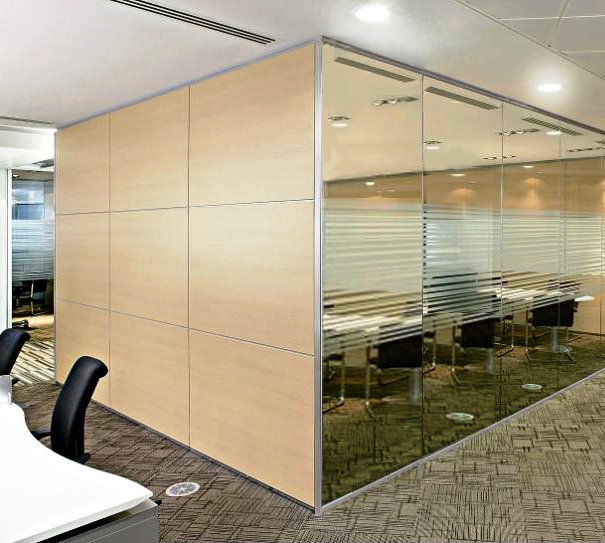

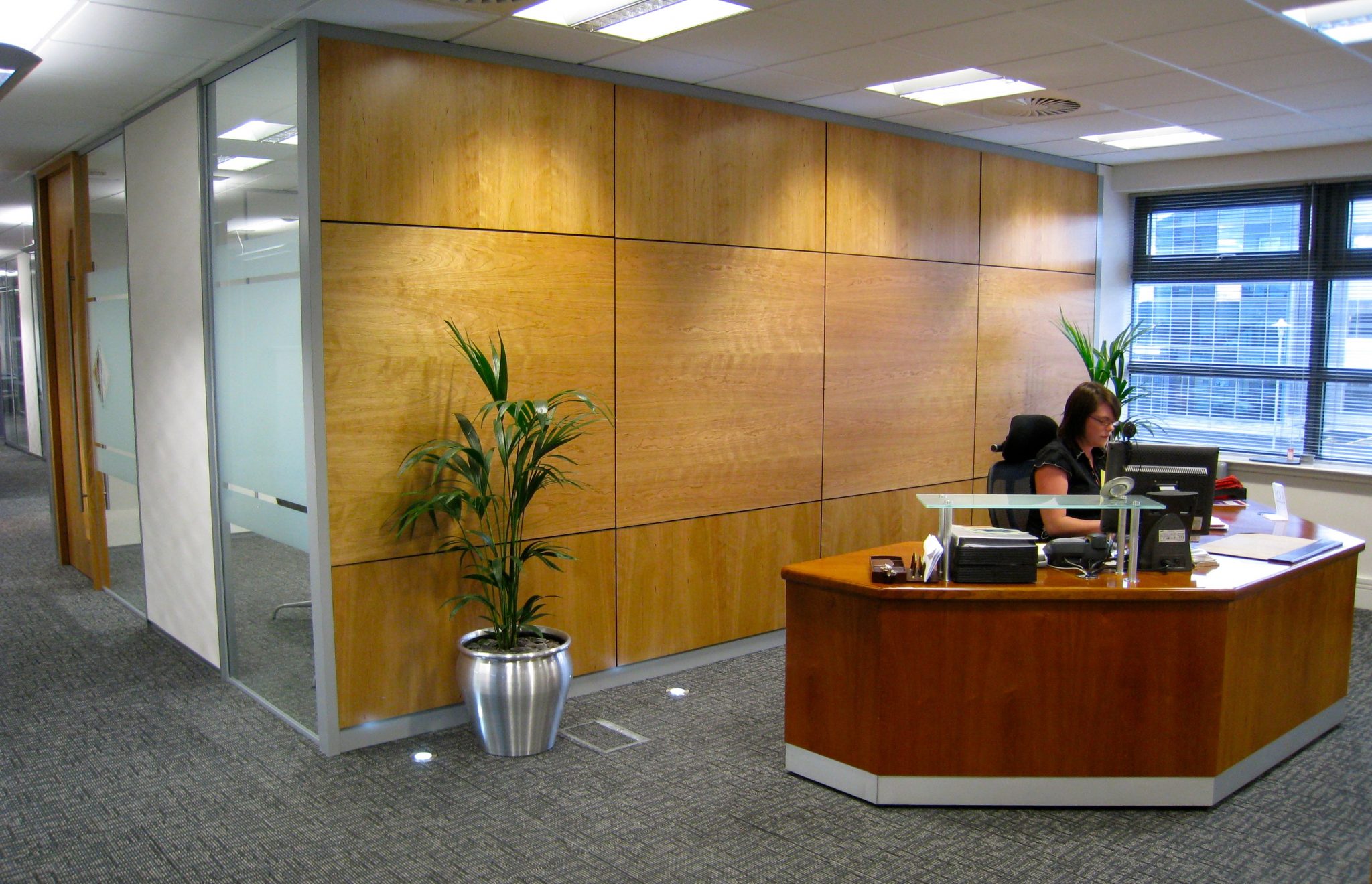

Bi-Block partitions are modular partitions which come in a choice of panel finishes including: Plasterboard, Melamine, Glazed, Veneer Faced Chipboards. It is both a functional and flexible solution, creating a highly interesting effect. Pre-assembled solid or glazed panels are hung either horizontally or vertically onto a site installed framework of recessed head and base channels, studs and transoms.

When you take in the strikingly simple lines and ingenious design touches of the unique bi-block partitions you will need no further proof that, truly, less is more. The smooth, flush finish on its panels and doors are cleverly achieved without visible fixings.

It is a stylish and elegant building solution, which offers fine panel joint details, slim window frames and vertical and horizontal panels all without visible fixings to ensure smooth flush elegance. The unique ‘locked mullion’ system eliminates panel creep and maintains the alignment of panels.

All these panel types and finishes are totally interchangeable and fully adaptable. The system can be modified or extended, or dismantled and reassembled, quickly and with ease. It is endlessly versatile and it comes in a wonderful choice of mix ‘n’ match panel colours and finishes – laminate, melamine, wood, whiteboard, fabric, vinyl, steel and more.

Bi-Block partition system is refined, classic and futuristic. It brings your designer’s vision to life with its architectural structure and practical design. It is stylish solutions of uncompromising quality.



Office Partitioning  Apex Partitions  Apex Partitions  Apex Bi-Block Partitions Technical Sheet




STRUCTURE

Partitions:

Standard Heights: Up to 3 metres.

Tracks: 50mm x 50mm polyester powder coated steel recessed head and base track.

Corners: 90° & 135° aluminium with snap-in profiles.

Dimensions: Nominal 75mm across panel faces.
Maximum full height panel width is 1.2 metres.
Maximum horizontal panel size is 1.2 metres x 2.4 metres.

Glass: 6mm toughened into pre-made window frames.
10mm and 12mm toughened into frameless glazing modules.

Joints: Recessed or pencil line for solid modules.

Blinds: Manually operated 25mm tilt & turn venetian blinds which are recessed or between double glazing.
