Partition Wall – High Performance Partitioning

High Partition Wall systems are able to reach heights up to 7 metres. They are designed to allow for use of large glazed panels whilst complying with all required British Standards and building regulations. They are able to achieve extremely high fire resistance and acoustic performance.



Quantum - Partition Wall System Quantum Partition Wall System  Quantum Partition Wall System  High Wall Partition Technical Sheet

A system with clean lines and stylish modern finishes.



High Wall Partition system is a stylish blend of performance credentials with application functions for rapid on-site installation. Sublimely simple and supremely versatile, the system also affords exceptional stability. This is a product that takes performance to its highest level. It achieves exceptional fire ratings of FR30/30, FR60/30 & FR60/60 and acoustics of up to 51Rw(dB).

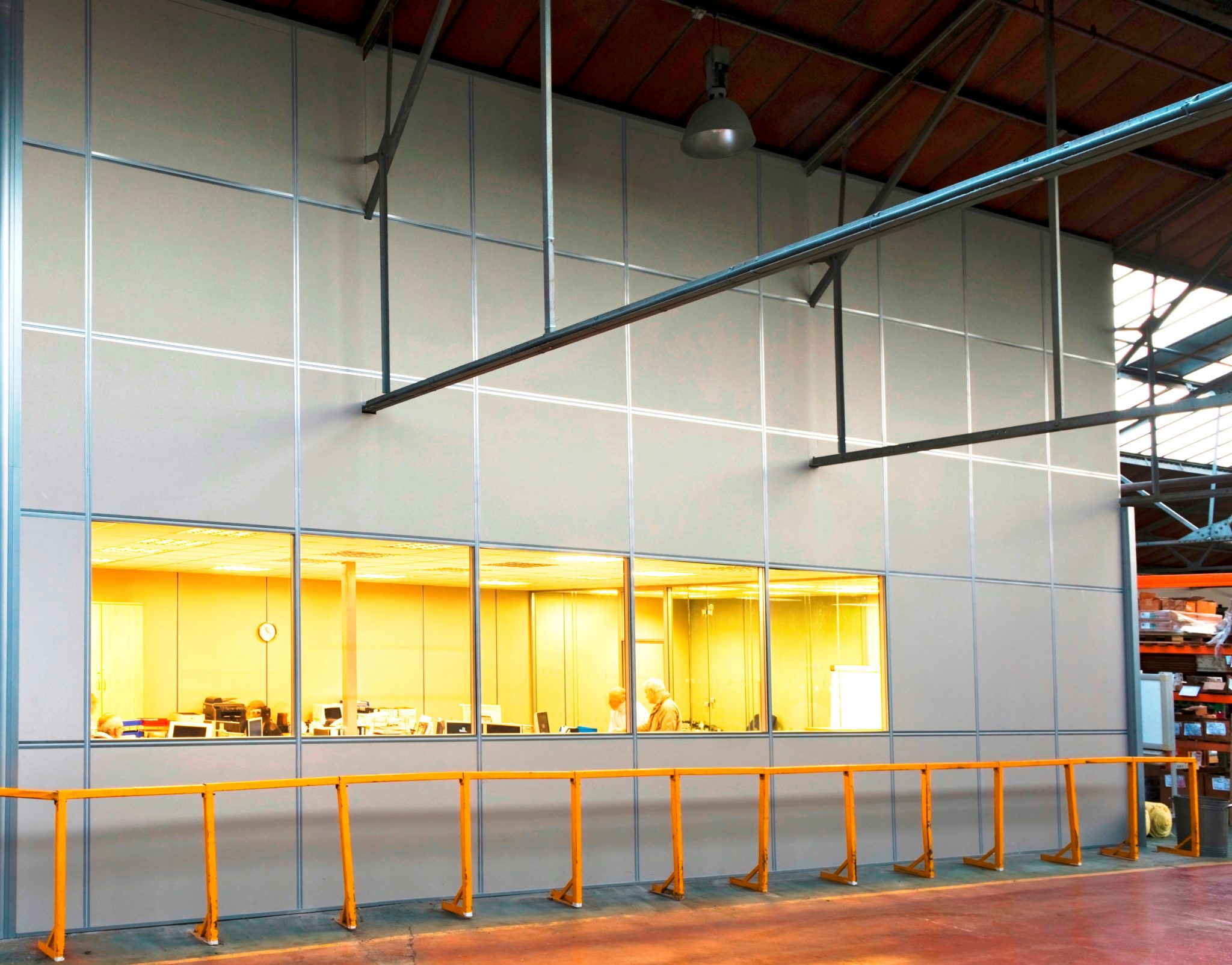

High Wall Partition is a 100mm all steel high performance partition system. It is unique in its ability to enable glazed modules in widths of up to 2 metres wide for installation in areas up to 6.5 metres high. It can provide up to one hour fire resistance and up to 51Rw(dB) acoustic performance in both solid and glazed modules.

It is the perfect choice for office and light industrial areas where stringent fire and acoustic regulations apply. High Wall Partition is not only a performance system; it creates an appealing and inviting ambience wherever it is assembled.

High Wall Partition is built to protect and comes with a host of design options for use in both office and industrial areas. It is the performance choice for high specification screens, when heights, level of duty and fire resistance specifications render all other systems unviable. It is truly the epitome of protection and performance.


STRUCTURE

Partitions:

Standard heights: Up to 6.5 metres.

Tracks: Polyester powder coated steel head and base tracks. Head 115mm x 50mm; Base 115mm x 30mm.

Corners: Nominal 150 x 150mm solid composite.

Dimensions: Overall thickness is 100mm across panel faces. Maximum panel width is 2 metres (dependent on fire rated specification).

Glass: Toughened glass from 6mm to 10mm and fire rated glass from 16.8mm to 25mm.

Joints: Top hat trims.

Blinds: Manually operated 25mm tilt & turn venetian blinds recessed or between double glazing.
